Step 12: Setting Camber

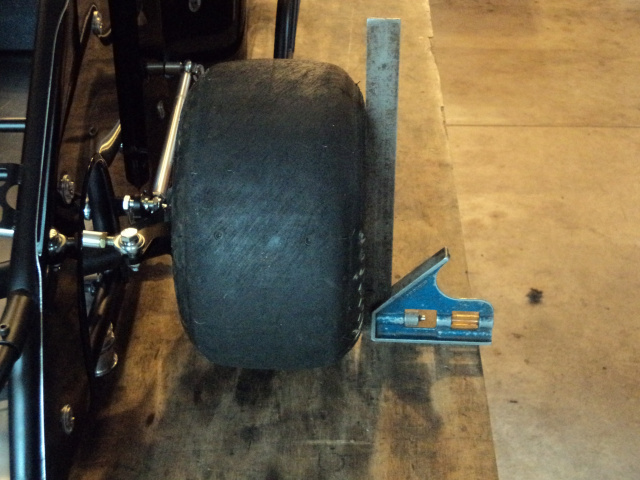

Placing the tires back on the front axle and air pressures set, place square against right front rim. With the square tightly against the bottom of rim there should be an 1/8 gap between square and top of rim for pavement. Dirt measurement will be a 1/16 gap. High banked tracks may require right front adjustment to be 3/16 gap.

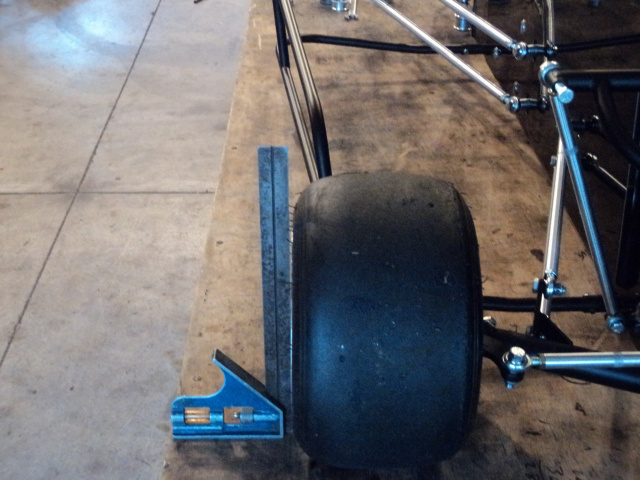

With square against left front rim for pavement there should be a 1/16 inch gap at bottom from square to rim. Dirt should be level with square touching top and bottom of rim.
