Step 11: Left Side Wheelbase

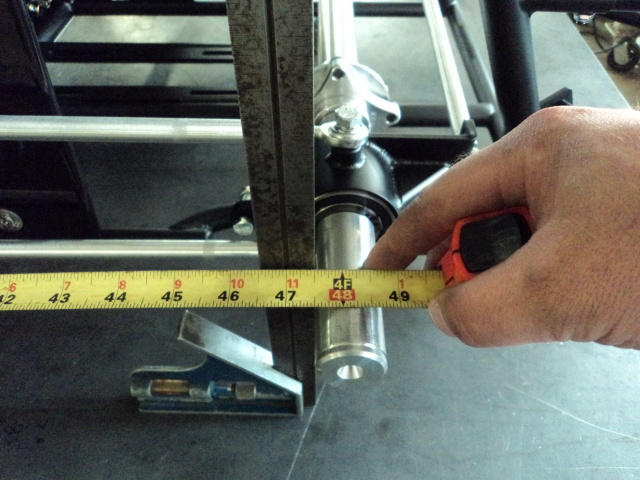

 Putting the tip of the tape measure on the left front spindle body, draw tape back to leading edge of rear axle. Large and medium wheelbase is 47 1/2. Small car wheelbase is 44 1/2. Spin left front rod when adjusting to get required wheelbase. IMPORTANT - when adjusting one side be sure to check the opposite side measurement and the front axle position as shown in step 8. Remeasure all 3 points atleast 3 to 5 times to make sure they are correct. Now the car is square on both sides and the process is completed.

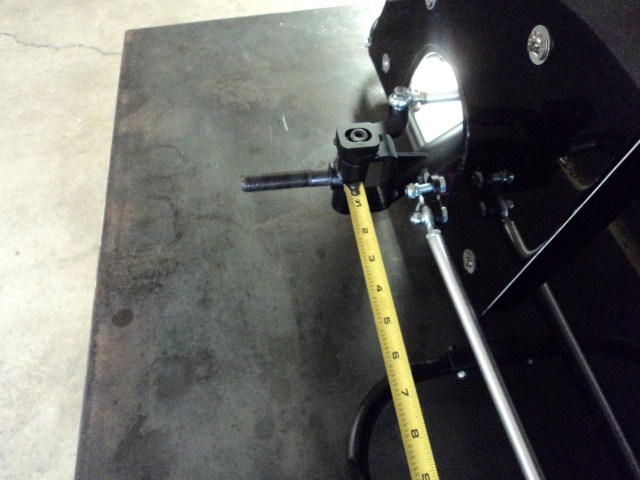

Step 8 photo - Pavement measurement 1 inch to outside of tab. Dirt measurement is 1 inch to inside of tab.
